# RabbitMQ

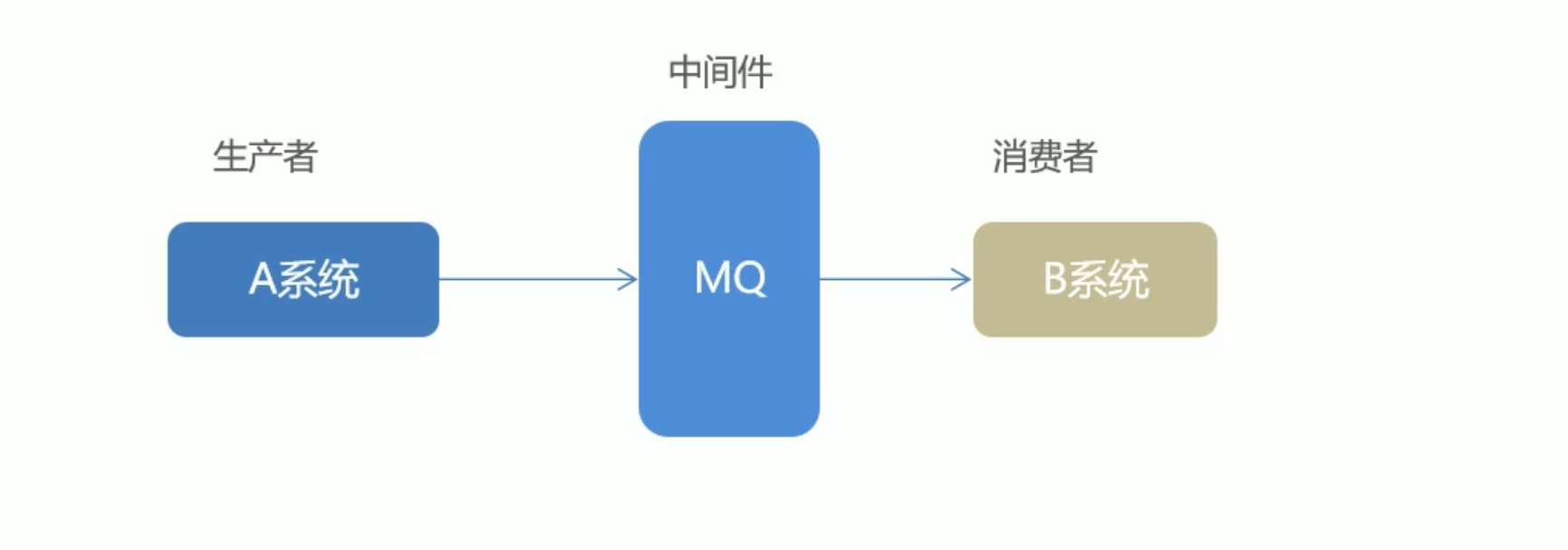

MQ 全称 Message Queue (消息队列) 是在消息的传输过程中保存消息的容器多用于分布式系统之间进行通信

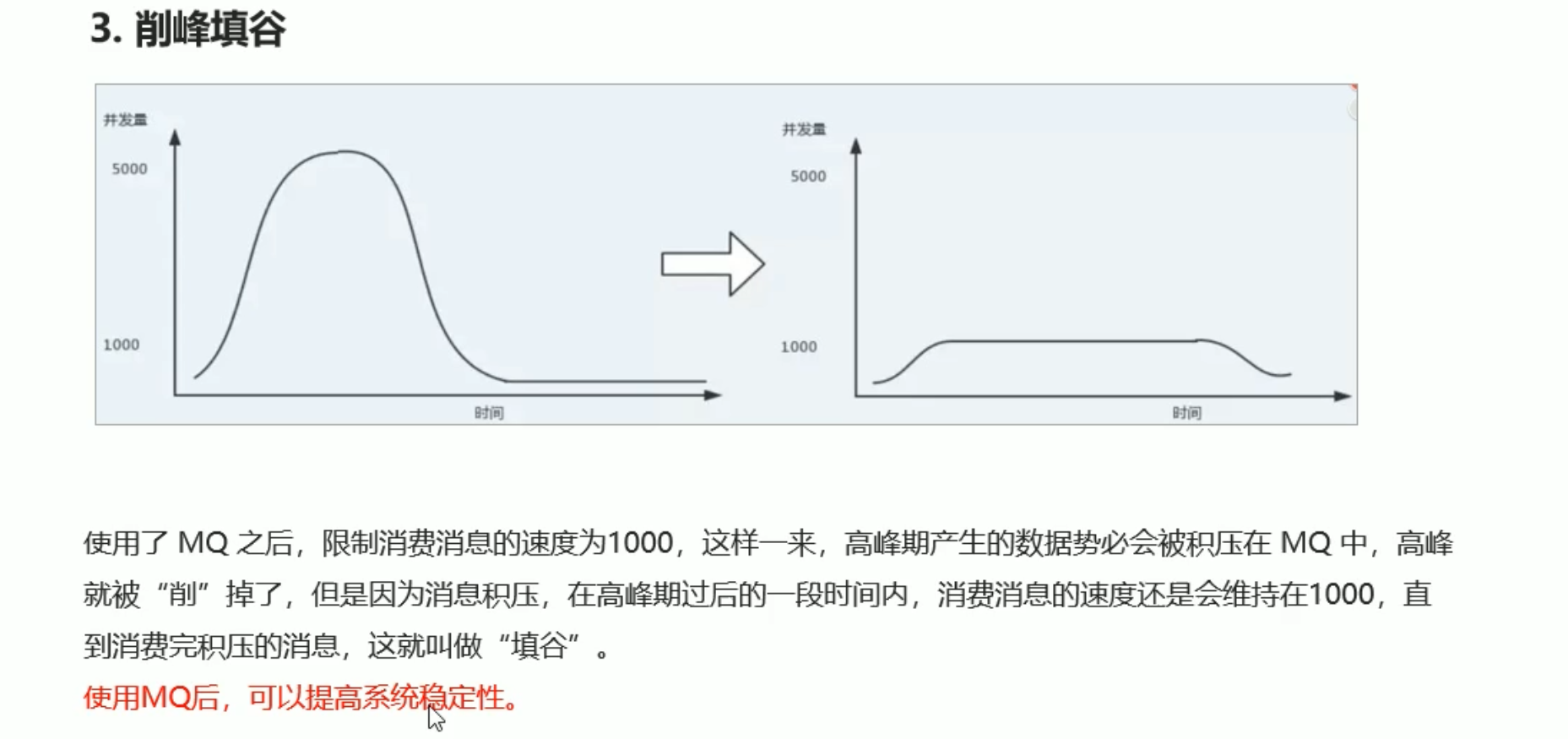

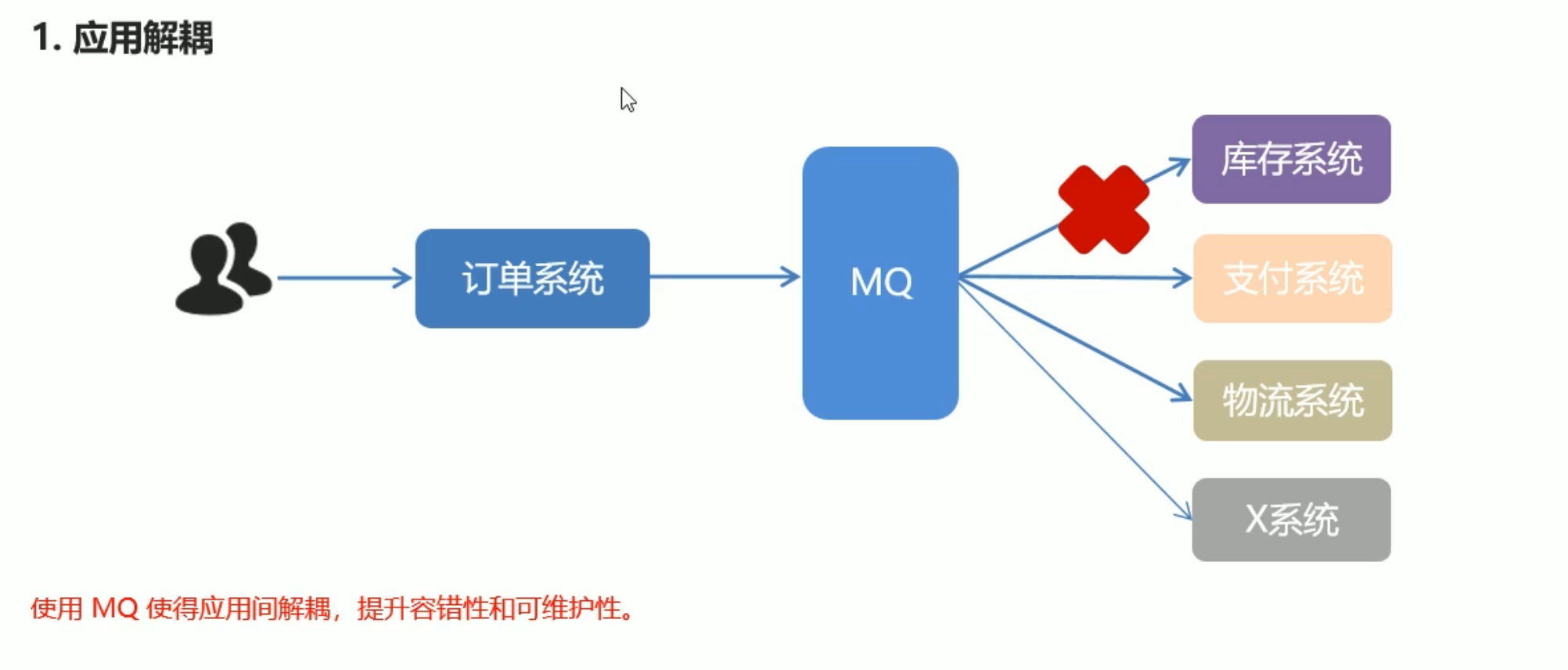

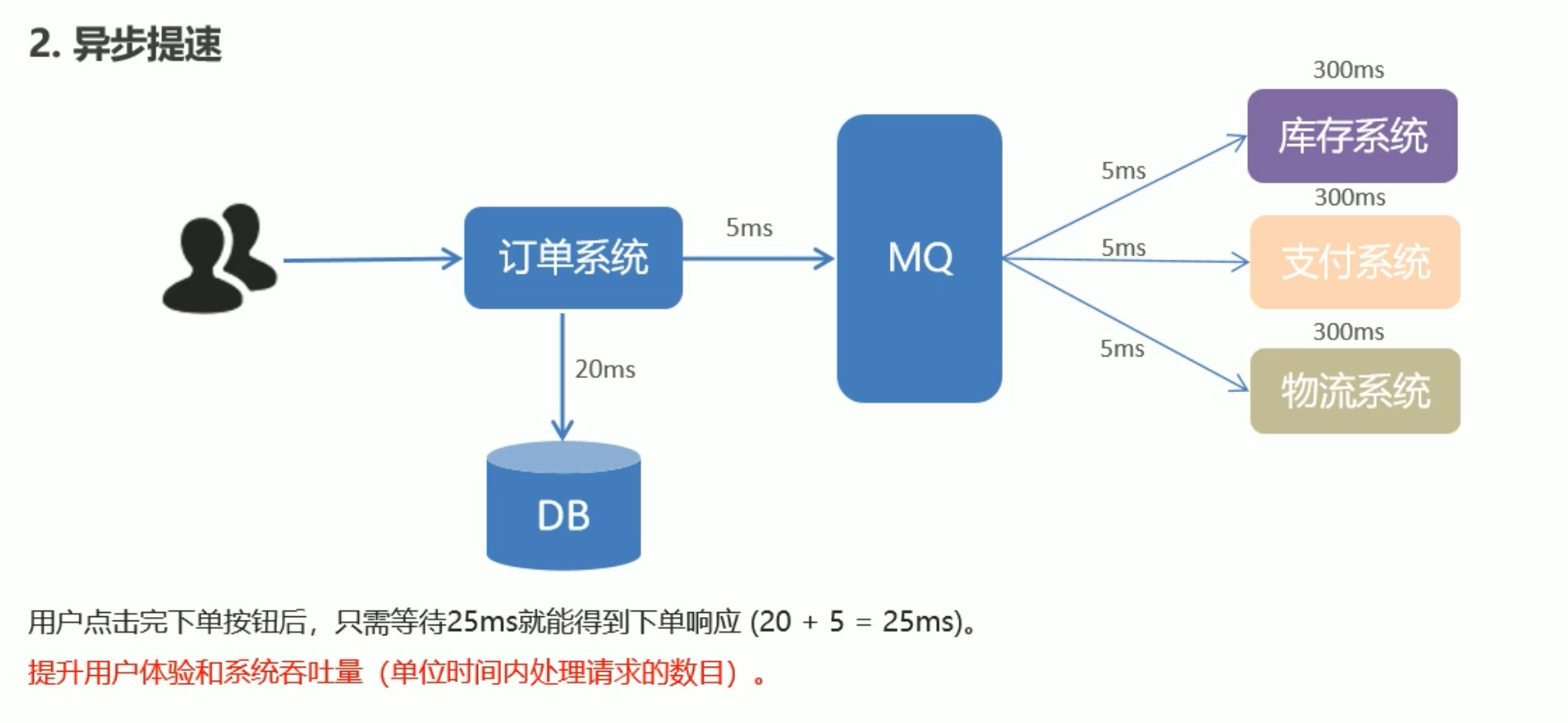

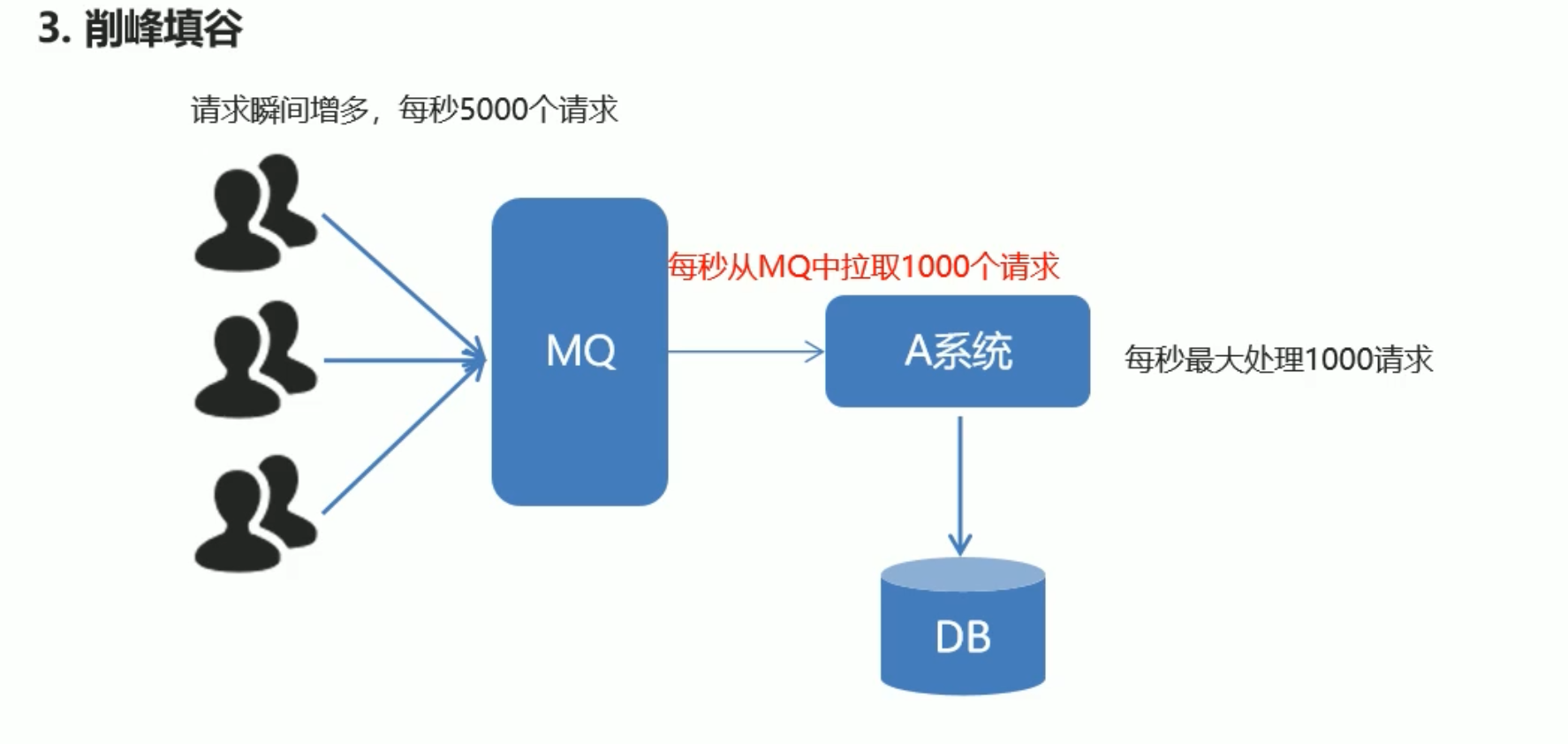

优势

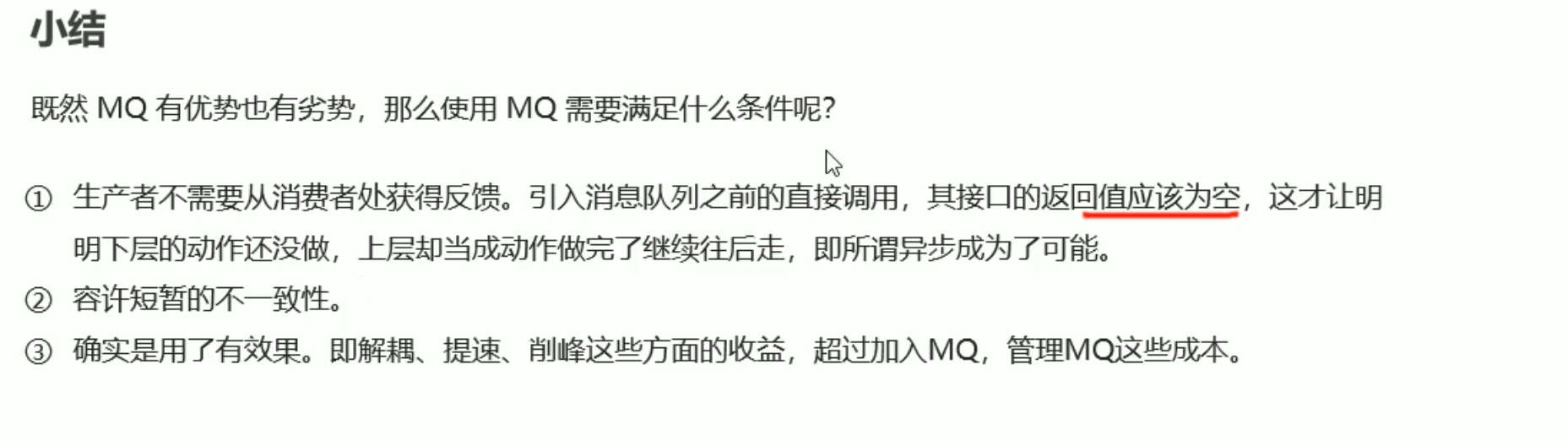

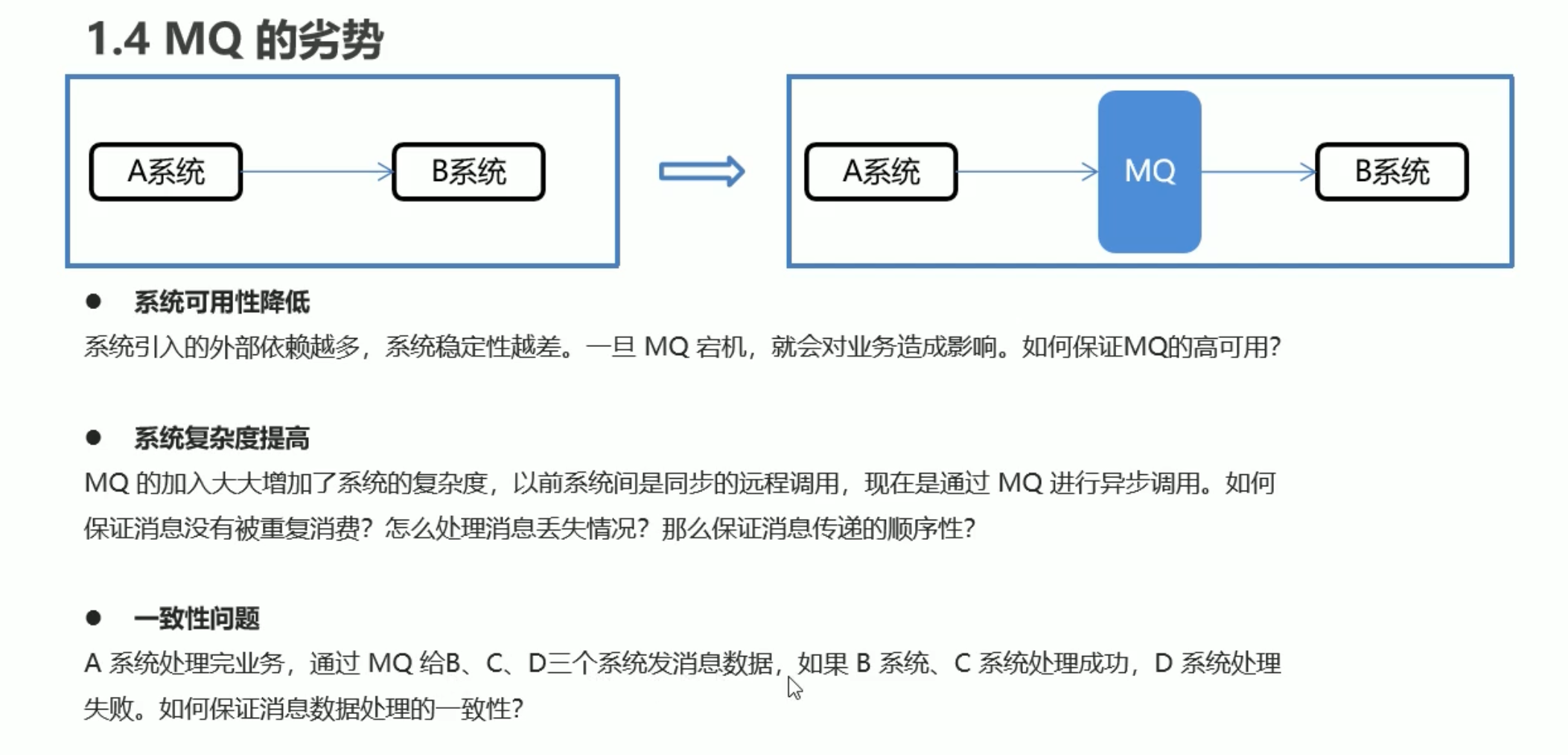

劣势

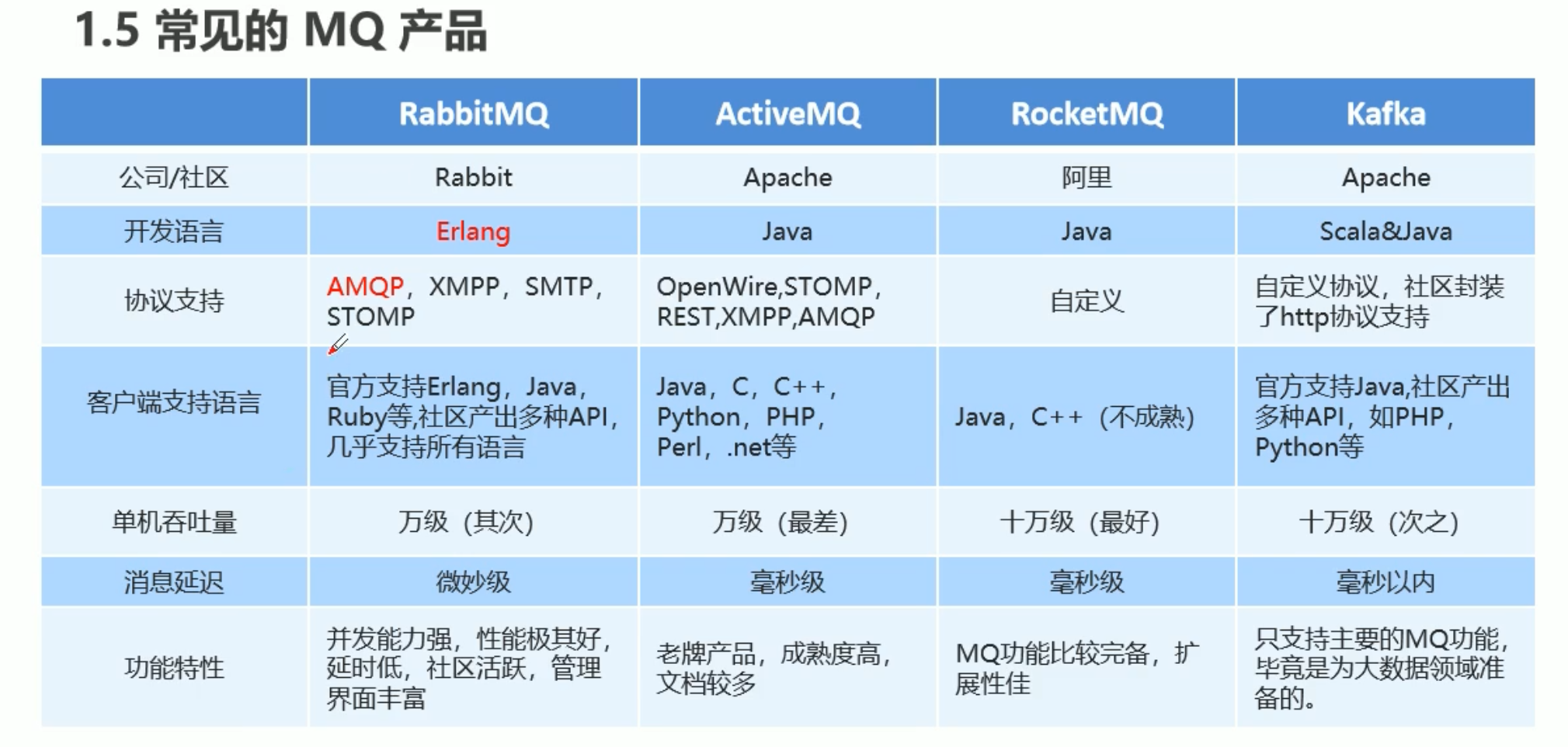

# 常用的 MQ 产品

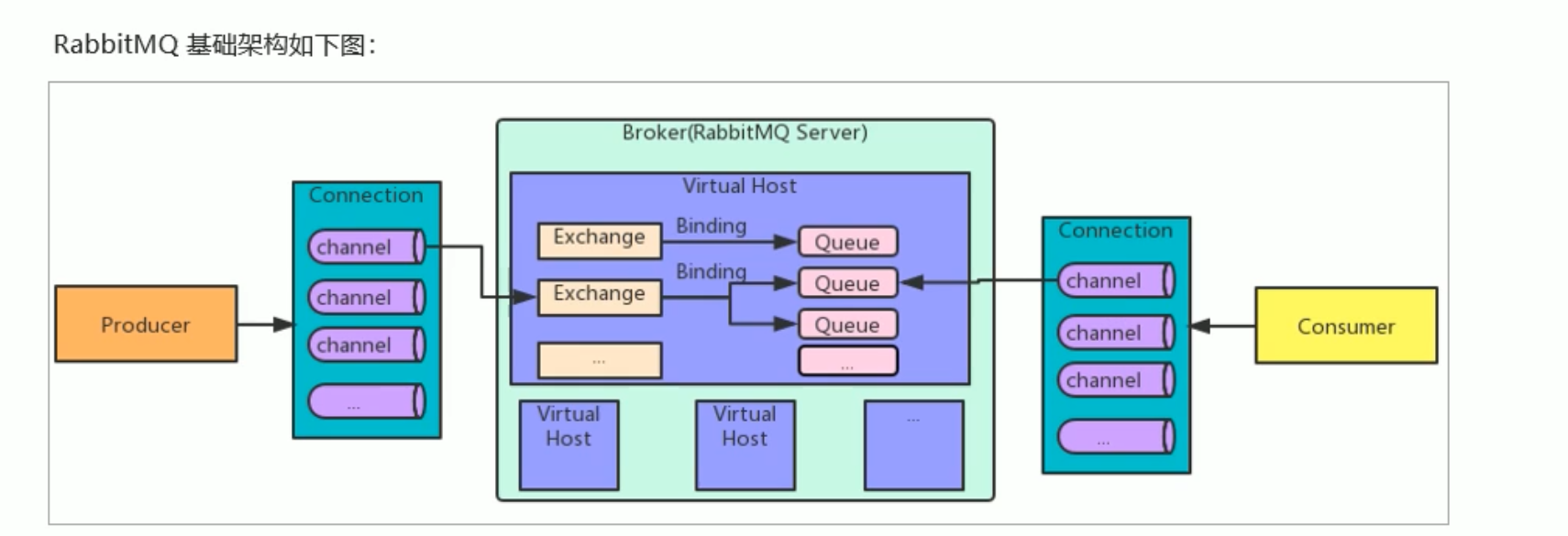

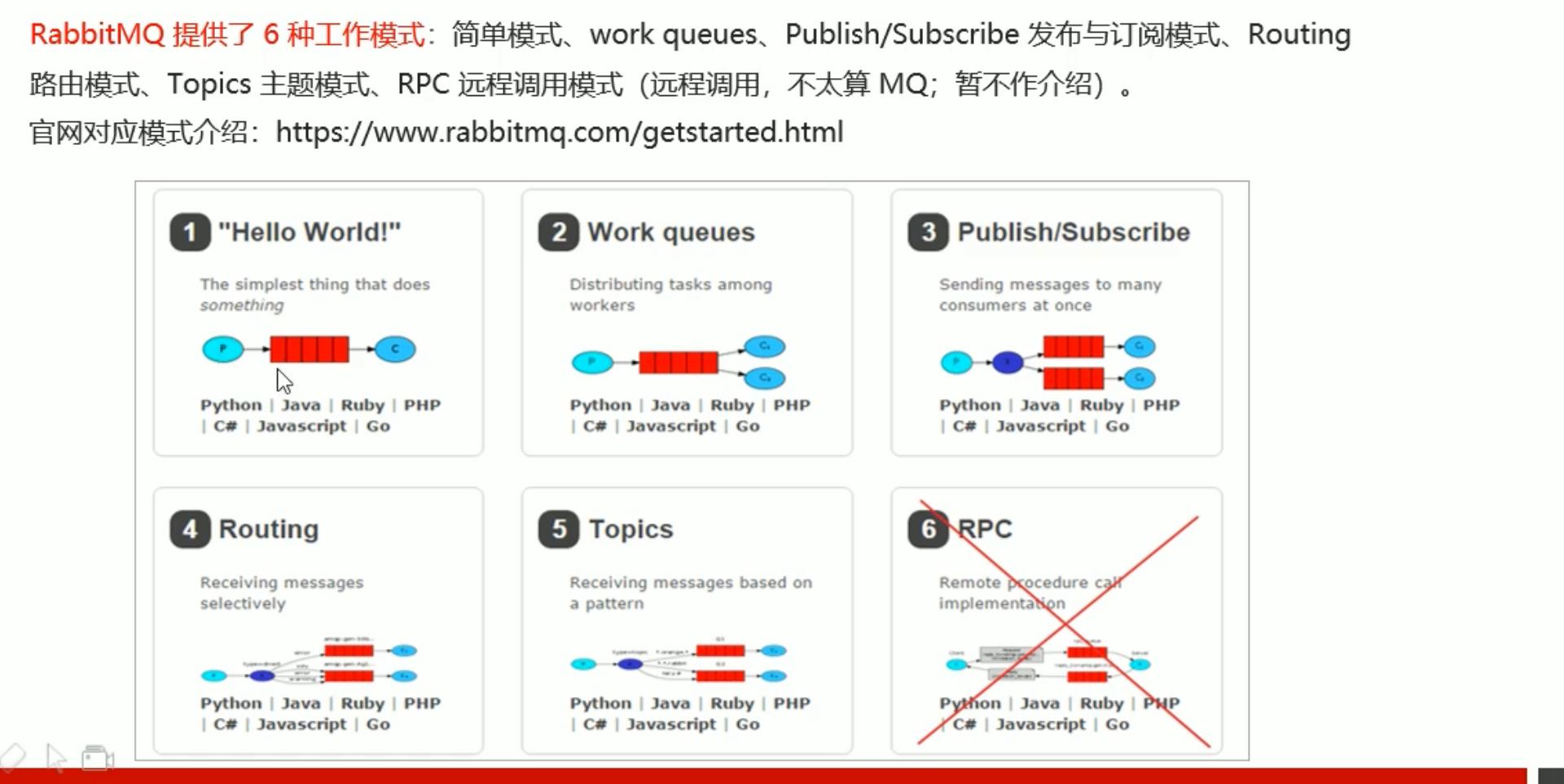

# RabbitMQ 简介

AMQP 即 Advanced Message Queuing Protocol (高级消息队列协议) 是一个网络协议是应用层协议的一个开放标准为面向消息的中间件设计

# JMS

JMS 即 Java 消息服务应用程序接口一个 Java 平台中关于面向中间件的 API

# 安装

安装 erlang

yum -y install gcc glibc-devel make ncurses-devel openssl-devel xmlto perl wget gtk2-devel binutils-devel
wget http://erlang.org/download/otp_src_22.0.tar.gz
tar -zxvf otp_src_22.0.tar.gz
mv otp_src_22.0 /usr/local/
cd /usr/local/otp_src_22.0/
mkdir ../erlang
./configure --prefix=/usr/local/erlang
make install

ll /usr/local/erlang/bin
echo 'export PATH=$PATH:/usr/local/erlang/bin' >> /etc/profile
source /etc/profile
erl

halt().

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

安装 RabbitMQ

cd /root
wget https://github.com/rabbitmq/rabbitmq-server/releases/download/v3.7.15/rabbitmq-server-generic-unix-3.7.15.tar.xz
yum install -y xz
/bin/xz -d rabbitmq-server-generic-unix-3.7.15.tar.xz
tar -xvf rabbitmq-server-generic-unix-3.7.15.tar
mv rabbitmq_server-3.7.15/ /usr/local/
mv /usr/local/rabbitmq_server-3.7.15  rabbitmq
echo 'export PATH=$PATH:/usr/local/rabbitmq/sbin' >> /etc/profile
source /etc/profile

1
2
3
4
5
6
7
8
9

启动

rabbitmq-server -detached
rabbitmq-plugins enable rabbitmq_management   #开启web插件
rabbitmqctl stop #停止
rabbitmqctl status #状态

1
2
3
4
5

默认账号密码:guest guest（这个账号只允许本机访问）

firewall-cmd --zone=public --add-port=15672/tcp --permanent
vim /usr/local/rabbitmq/ebin/rabbit.app  #配置

1
2

访问 http://192.168.130.124:15672/

# 入门案例

# 生产者

 <dependencies>
        <dependency>
            <groupId>com.rabbitmq</groupId>
            <artifactId>amqp-client</artifactId>
            <version>5.6.0</version>

        </dependency>
    </dependencies>
    <build>
        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <version>3.8.0</version>
                <configuration>
                    <source>1.8</source>
                    <target>1.8</target>
                </configuration>
            </plugin>
        </plugins>
    </build>

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

//1.创建连接工厂
ConnectionFactory factory = new ConnectionFactory();
//2.设置参数
factory.setHost("192.168.130.124"); //ip
factory.setPort(5672);  //端口
factory.setVirtualHost("/itcast");  //虚拟机 默认值
factory.setUsername("iekr");  //用户名
factory.setPassword("iekr");  //密码 默认值为guest
//3.创建连接 connection
Connection connection = factory.newConnection();
//4.创建channel
Channel channel = connection.createChannel();
//5.创建队列queue
/**
 * (String queue, boolean durable, boolean exclusive, boolean autoDelete, Map<String, Object> arguments)
 * queue 队列名称
 * durable 是否持久化 当mq重启之后还在
 * exclusive 是否独占,只能有一个消费者监听这个队列  当Connection关闭时是否删除队列
 * autoDelete 是否自动删除 当没有Consumer时 自动删除
 * arguments 参数
 *
 */
//如果没有一个叫hello_world的队列 则自动创建
channel.queueDeclare("hello_world",true,false,false,null);
//6.发送消息
/**
 * String var1, String var2, BasicProperties var3, byte[] var4
 * var1 交换机名称 简单模式下会使用默认的""
 * var2  路由名称
 * var3  配置信息
 * var4  发送消息数据
 */
String body = "hello world";
channel.basicPublish("","hello_world",null,body.getBytes(StandardCharsets.UTF_8));

//7.释放资源
channel.close();
connection.close();

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38

# 消费者

与生产者坐标一致

        //1.创建连接工厂
        ConnectionFactory factory = new ConnectionFactory();
        //2.设置参数
        factory.setHost("192.168.130.124"); //ip
        factory.setPort(5672);  //端口
        factory.setVirtualHost("/itcast");  //虚拟机 默认值
        factory.setUsername("iekr");  //用户名
        factory.setPassword("iekr");  //密码 默认值为guest
        //3.创建连接 connection
        Connection connection = factory.newConnection();
        //4.创建channel
        Channel channel = connection.createChannel();
        //5.创建队列queue
        /**
         * (String queue, boolean durable, boolean exclusive, boolean autoDelete, Map<String, Object> arguments)
         * queue 队列名称
         * durable 是否持久化 当mq重启之后还在
         * exclusive 是否独占,只能有一个消费者监听这个队列  当Connection关闭时是否删除队列
         * autoDelete 是否自动删除 当没有Consumer时 自动删除
         * arguments 参数
         *
         */
        //如果没有一个叫hello_world的队列 则自动创建
        channel.queueDeclare("hello_world",true,false,false,null);
        //6.接受消息

        Consumer consumer = new DefaultConsumer(channel){
            //回调方法 当收到消息后 会执行该方法

            /**
             *
             * @param consumerTag  标识
             * @param envelope  获取一些信息 交换机 路由key
             * @param properties  配置信息
             * @param body  数据
             * @throws IOException
             */
            @Override
            public void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {
                System.out.println(consumerTag);
                System.out.println(envelope.getExchange());
                System.out.println(envelope.getRoutingKey());
                System.out.println(properties);
                System.out.println(new String(body));
            }
        };
        /**
         * String var1, DeliverCallback var2, CancelCallback var3
         * queue 队列名称
         * autoAck 是否自动确认
         * callback 回调对象
         */
        channel.basicConsume("hello_world",true,consumer);

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54

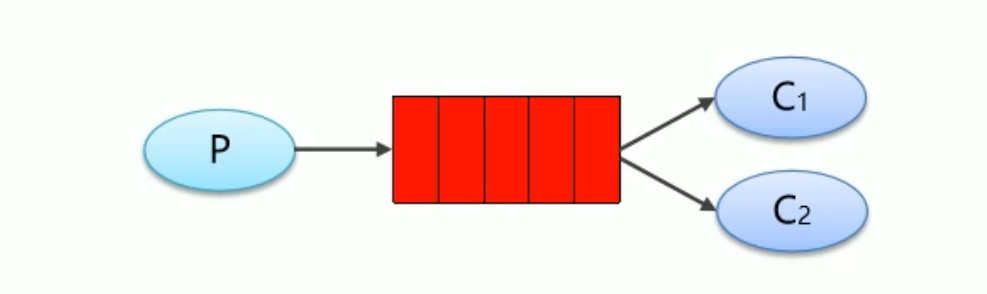

# Work queues 工作队列模式

多个消费者共同消费一个队列中的消息

对于任务过重或者任务较多情况使用工作队列可以提高任务处理的速度

生产者生成多条消息而消费者轮流切换接受

Work queues 代码与生产者消费者没有太大区别只是生产者在频道中发送多条多个消费者轮流接受消息

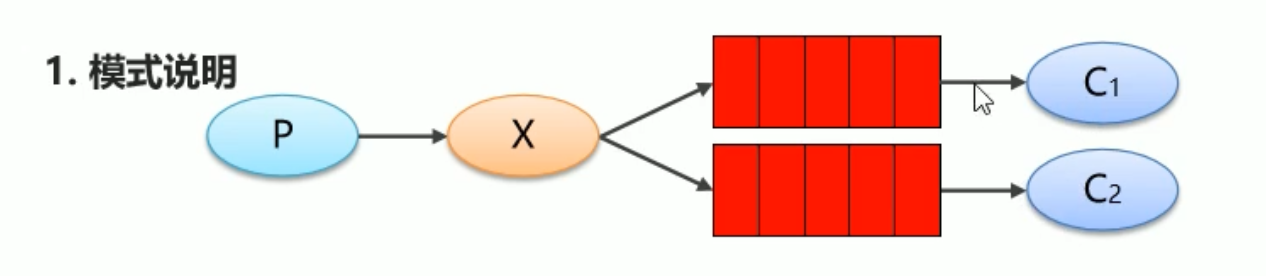

# Pub/Sub 订阅模式

X 为交换机生产者发送消息给交换机而交换机转发消息有三种模式

Fanout 广播模式将消息交给所有绑定到交换机的队列
Direct 定向把消息交给符合指定 routing key 的队列
Topic 通配符把消息交给符合 routing pattern (路由模式)

生产者

        //1.创建连接工厂
        ConnectionFactory factory = new ConnectionFactory();
        //2.设置参数
        factory.setHost("192.168.130.124"); //ip
        factory.setPort(5672);  //端口
        factory.setVirtualHost("/itcast");  //虚拟机 默认值
        factory.setUsername("iekr");  //用户名
        factory.setPassword("iekr");  //密码 默认值为guest
        //3.创建连接 connection
        Connection connection = factory.newConnection();
        //4.创建channel
        Channel channel = connection.createChannel();
        //5.创建交换机
        /**
         * String var1, BuiltinExchangeType var2, boolean var3, boolean var4, boolean var5, Map<String, Object> var6
         * exchange 交换机名称
         * type 交换机类型 枚举  DIRECT("direct")定向   FANOUT("fanout")扇形(广播)   TOPIC("topic")通配符 HEADERS("headers") 参数匹配
         * durable 是否持久化
         * autoDelete 自动删除
         * internal 内部使用 一般为false
         * arguments 参数
         */
        String exchangeName = "test_fanout";
        channel.exchangeDeclare(exchangeName, BuiltinExchangeType.FANOUT, true, false, false, null);
        //6.创建队列
        String queue1Name = "test_fanout_queue1";
        String queue2Name = "test_fanout_queue2";
        channel.queueDeclare(queue1Name, true, false, false, null);
        channel.queueDeclare(queue2Name, true, false, false, null);
        //7.绑定队列和交换机
        /**  String queue, String exchange, String routingKey
         *  queue  队列名称
         *  exchange 交换机名称
         *  routingKey 路由键绑定规则   如果交换机类型为FANOUT 则routingKey为""
         */
        channel.queueBind(queue1Name, exchangeName, "");
        channel.queueBind(queue2Name, exchangeName, "");

        //8.发送消息
        String body = "日志信息:";
        channel.basicPublish(exchangeName, "", null, body.getBytes(StandardCharsets.UTF_8));

        //9.释放资源
        channel.close();
        connection.close();

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45

多个消费者绑定不同的队列

        //1.创建连接工厂
        ConnectionFactory factory = new ConnectionFactory();
        //2.设置参数
        factory.setHost("192.168.130.124"); //ip
        factory.setPort(5672);  //端口
        factory.setVirtualHost("/itcast");  //虚拟机 默认值
        factory.setUsername("iekr");  //用户名
        factory.setPassword("iekr");  //密码 默认值为guest
        //3.创建连接 connection
        Connection connection = factory.newConnection();
        //4.创建channel
        Channel channel = connection.createChannel();

        //6.接受消息
        String queue1Name = "test_fanout_queue1";
        String queue2Name = "test_fanout_queue2";
        Consumer consumer = new DefaultConsumer(channel){
            //回调方法 当收到消息后 会执行该方法

            /**
             *
             * @param consumerTag  标识
             * @param envelope  获取一些信息 交换机 路由key
             * @param properties  配置信息
             * @param body  数据
             * @throws IOException
             */
            @Override
            public void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {
//                System.out.println(consumerTag);
//                System.out.println(envelope.getExchange());
//                System.out.println(envelope.getRoutingKey());
//                System.out.println(properties);
                System.out.println(new String(body));
                System.out.println("第一个消费者");
            }
        };
        /**
         * String var1, DeliverCallback var2, CancelCallback var3
         * queue 队列名称
         * autoAck 是否自动确认
         * callback 回调对象
         */
        channel.basicConsume(queue1Name,true,consumer);

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44

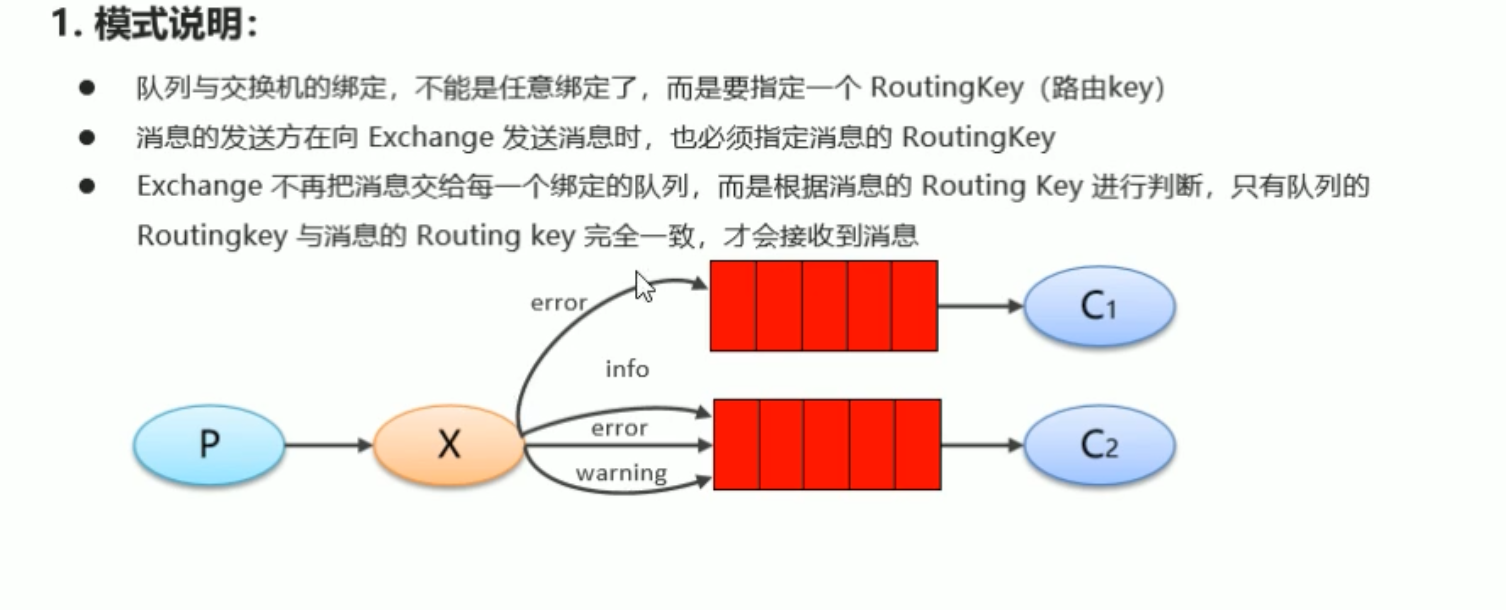

# Routing 路由模式

生产者发送不同 key 的消息给交换机而交换机根据队列的 key 转发消息给有标识的队列

        //1.创建连接工厂
        ConnectionFactory factory = new ConnectionFactory();
        //2.设置参数
        factory.setHost("192.168.130.124"); //ip
        factory.setPort(5672);  //端口
        factory.setVirtualHost("/itcast");  //虚拟机 默认值
        factory.setUsername("iekr");  //用户名
        factory.setPassword("iekr");  //密码 默认值为guest
        //3.创建连接 connection
        Connection connection = factory.newConnection();
        //4.创建channel
        Channel channel = connection.createChannel();
        //5.创建交换机
        /**
         * String var1, BuiltinExchangeType var2, boolean var3, boolean var4, boolean var5, Map<String, Object> var6
         * exchange 交换机名称
         * type 交换机类型 枚举  DIRECT("direct")定向   FANOUT("fanout")扇形(广播)   TOPIC("topic")通配符 HEADERS("headers") 参数匹配
         * durable 是否持久化
         * autoDelete 自动删除
         * internal 内部使用 一般为false
         * arguments 参数
         */
        String exchangeName = "test_direct";
        channel.exchangeDeclare(exchangeName, BuiltinExchangeType.DIRECT, true, false, false, null);
        //6.创建队列
        String queue1Name = "test_direct_queue1";
        String queue2Name = "test_direct_queue2";

        channel.queueDeclare(queue1Name, true, false, false, null);
        channel.queueDeclare(queue2Name, true, false, false, null);
        //7.绑定队列和交换机
        /**  String queue, String exchange, String routingKey
         *  queue  队列名称
         *  exchange 交换机名称
         *  routingKey 路由键绑定规则   如果交换机类型为FANOUT 则routingKey为""
         */
        //队列1的绑定
        channel.queueBind(queue1Name, exchangeName, "error");
        //队列2的绑定
        channel.queueBind(queue2Name, exchangeName, "info");
        channel.queueBind(queue2Name, exchangeName, "error");
        channel.queueBind(queue2Name, exchangeName, "warning");

        //8.发送消息
        String body = "日志信息:";
        //队列1只接受error消息 而队列2所有类型都接受
        channel.basicPublish(exchangeName, "info", null, body.getBytes(StandardCharsets.UTF_8));

        //9.释放资源
        channel.close();
        connection.close();

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51

消费者

        //1.创建连接工厂
        ConnectionFactory factory = new ConnectionFactory();
        //2.设置参数
        factory.setHost("192.168.130.124"); //ip
        factory.setPort(5672);  //端口
        factory.setVirtualHost("/itcast");  //虚拟机 默认值
        factory.setUsername("iekr");  //用户名
        factory.setPassword("iekr");  //密码 默认值为guest
        //3.创建连接 connection
        Connection connection = factory.newConnection();
        //4.创建channel
        Channel channel = connection.createChannel();

        //6.接受消息
        String queue1Name = "test_direct_queue1";
        String queue2Name = "test_direct_queue2";
        Consumer consumer = new DefaultConsumer(channel){
            //回调方法 当收到消息后 会执行该方法

            /**
             *
             * @param consumerTag  标识
             * @param envelope  获取一些信息 交换机 路由key
             * @param properties  配置信息
             * @param body  数据
             * @throws IOException
             */
            @Override
            public void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {
//                System.out.println(consumerTag);
//                System.out.println(envelope.getExchange());
//                System.out.println(envelope.getRoutingKey());
//                System.out.println(properties);
                System.out.println(new String(body));
                System.out.println("队列1 存储到数据库");
            }
        };
        /**
         * String var1, DeliverCallback var2, CancelCallback var3
         * queue 队列名称
         * autoAck 是否自动确认
         * callback 回调对象
         */
        channel.basicConsume(queue1Name,true,consumer);

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44

# Topics 通配符模式

使用通配符和路由器转发让队列更加灵活的接受对应的消息

* 星号代表 0 个或多个单词

#井号代表 1 个单词

生产者

//1.创建连接工厂
ConnectionFactory factory = new ConnectionFactory();
//2.设置参数
factory.setHost("192.168.130.124"); //ip
factory.setPort(5672);  //端口
factory.setVirtualHost("/itcast");  //虚拟机 默认值
factory.setUsername("iekr");  //用户名
factory.setPassword("iekr");  //密码 默认值为guest
//3.创建连接 connection
Connection connection = factory.newConnection();
//4.创建channel
Channel channel = connection.createChannel();
//5.创建交换机
/**
 * String var1, BuiltinExchangeType var2, boolean var3, boolean var4, boolean var5, Map<String, Object> var6
 * exchange 交换机名称
 * type 交换机类型 枚举  DIRECT("direct")定向   FANOUT("fanout")扇形(广播)   TOPIC("topic")通配符 HEADERS("headers") 参数匹配
 * durable 是否持久化
 * autoDelete 自动删除
 * internal 内部使用 一般为false
 * arguments 参数
 */
String exchangeName = "test_topics";
channel.exchangeDeclare(exchangeName, BuiltinExchangeType.TOPIC, true, false, false, null);
//6.创建队列
String queue1Name = "test_topics_queue1";
String queue2Name = "test_topics_queue2";
channel.queueDeclare(queue1Name, true, false, false, null);
channel.queueDeclare(queue2Name, true, false, false, null);
//7.绑定队列和交换机
/**  String queue, String exchange, String routingKey
 *  queue  队列名称
 *  exchange 交换机名称
 *  routingKey 路由键绑定规则   如果交换机类型为FANOUT 则routingKey为""
 */
//routing key  系统的名称.日志的级别
channel.queueBind(queue1Name, exchangeName, "#.error"); //以.error结尾
channel.queueBind(queue1Name, exchangeName, "order.*");  //以order.开头
channel.queueBind(queue2Name, exchangeName, "*.*");    //队列2所有消息都可以接受到

//8.发送消息
String body = "日志信息:";
channel.basicPublish(exchangeName, "goods.info", null, body.getBytes(StandardCharsets.UTF_8));

//9.释放资源
channel.close();
connection.close();

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47

消费者

        //1.创建连接工厂
        ConnectionFactory factory = new ConnectionFactory();
        //2.设置参数
        factory.setHost("192.168.130.124"); //ip
        factory.setPort(5672);  //端口
        factory.setVirtualHost("/itcast");  //虚拟机 默认值
        factory.setUsername("iekr");  //用户名
        factory.setPassword("iekr");  //密码 默认值为guest
        //3.创建连接 connection
        Connection connection = factory.newConnection();
        //4.创建channel
        Channel channel = connection.createChannel();

        //6.接受消息
        String queue1Name = "test_topics_queue1";
        String queue2Name = "test_topics_queue2";
        Consumer consumer = new DefaultConsumer(channel){
            //回调方法 当收到消息后 会执行该方法

            /**
             *
             * @param consumerTag  标识
             * @param envelope  获取一些信息 交换机 路由key
             * @param properties  配置信息
             * @param body  数据
             * @throws IOException
             */
            @Override
            public void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {
//                System.out.println(consumerTag);
//                System.out.println(envelope.getExchange());
//                System.out.println(envelope.getRoutingKey());
//                System.out.println(properties);
                System.out.println(new String(body));
                System.out.println("队列1 存储到数据库");
            }
        };
        /**
         * String var1, DeliverCallback var2, CancelCallback var3
         * queue 队列名称
         * autoAck 是否自动确认
         * callback 回调对象
         */
        channel.basicConsume(queue1Name,true,consumer);

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44

# Spring 整合 RabbitMQ

坐标

    <dependencies>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-context</artifactId>
            <version>5.3.10</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.amqp</groupId>
            <artifactId>spring-rabbit</artifactId>
            <version>2.3.9</version>
        </dependency>
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>4.13</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-test</artifactId>
            <version>5.3.10</version>
        </dependency>
    </dependencies>
    <build>
        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <version>3.8.1</version>
                <configuration>
                    <source>1.8</source>
                    <target>1.8</target>
                </configuration>
            </plugin>
        </plugins>
    </build>

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35

rabbitmq.properties

rabbitmq.host=192.168.130.124
rabbitmq.port=5672
rabbitmq.username=iekr
rabbitmq.password=iekr
rabbitmq.virtual-host=/itcast

1
2
3
4
5

# 生产者

spring-rabbitmq-producer.xml

<?xml version="1.0" encoding="UTF-8" ?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:p="http://www.springframework.org/schema/p"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:rabbit="http://www.springframework.org/schema/rabbit"
       xsi:schemaLocation="
       http://www.springframework.org/schema/beans
        https://www.springframework.org/schema/beans/spring-beans.xsd
       http://www.springframework.org/schema/context
        https://www.springframework.org/schema/context/spring-context.xsd
        http://www.springframework.org/schema/rabbit
        https://www.springframework.org/schema/rabbit/spring-rabbit.xsd
">
    <!--    加载配置文件-->
    <context:property-placeholder location="classpath:rabbitmq.properties"/>

    <!--    定义rabbitmq connectionFactory-->
    <rabbit:connection-factory id="connectionFactory" host="${rabbitmq.host}"
                               port="${rabbitmq.port}"
                               username="${rabbitmq.username}"
                               password="${rabbitmq.password}"
                               virtual-host="${rabbitmq.virtual-host}"/>
    <!--    定义管理交换机 队列-->
    <rabbit:admin connection-factory="connectionFactory"/>

    <!--    定义持久化队列 不存在则自动创建 不绑定到交换机则绑定到默认交换机   默认交换机为direct  名字为""  路由键位队列名称-->
    <rabbit:queue id="spring_queue" name="spring_queue" auto-declare="true"/>

    <!--    定义广播交换机中的持久化队列 不存在则自动创建-->
    <rabbit:queue id="spring_fanout_queue_1" name="spring_fanout_queue_1" auto-declare="true"/>
    <rabbit:queue id="spring_fanout_queue_2" name="spring_fanout_queue_2" auto-declare="true"/>

    <!--    定义广播类型交换机 绑定上面两个队列-->
    <rabbit:fanout-exchange name="spring_fanout_exchange"
                            id="spring_fanout_exchange"
                            auto-declare="true">
        <rabbit:bindings>
            <rabbit:binding queue="spring_fanout_queue_1"/>
            <rabbit:binding queue="spring_fanout_queue_2"/>
        </rabbit:bindings>
    </rabbit:fanout-exchange>

    <!--    通配符队列-->
    <rabbit:queue id="spring_topic_queue_star" name="spring_topic_queue_star" auto-declare="true"/>
    <rabbit:queue id="spring_topic_queue_well" name="spring_topic_queue_well" auto-declare="true"/>
    <rabbit:queue id="spring_topic_queue_well2" name="spring_topic_queue_well2" auto-declare="true"/>

    <!--    通配符定义-->
    <rabbit:topic-exchange name="spring_topic_exchange" id="spring_topic_exchange" auto-declare="true">
        <rabbit:bindings>
            <rabbit:binding pattern="heima.*" queue="spring_topic_queue_star"/>
            <rabbit:binding pattern="heima.#" queue="spring_topic_queue_well"/>
            <rabbit:binding pattern="itcast.#" queue="spring_topic_queue_well2"/>
        </rabbit:bindings>
    </rabbit:topic-exchange>

    <!--    定义rabbitTemplate对象操作可以在代码中方便发送消息-->
    <rabbit:template id="rabbitTemplate" connection-factory="connectionFactory"/>


</beans>

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63

test

package com.itheima;

import org.junit.Test;
import org.junit.runner.RunWith;
import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.test.context.ContextConfiguration;
import org.springframework.test.context.junit4.SpringJUnit4ClassRunner;

@RunWith(SpringJUnit4ClassRunner.class)
@ContextConfiguration(locations = "classpath:spring-rabbitmq-producer.xml")
public class ProducerTest {

    //注入
    @Autowired
    private RabbitTemplate rabbitTemplate;

    //1对1
    @Test
    public void testHelloWorld() {
        //发送消息
        rabbitTemplate.convertAndSend("spring_queue", "hello world spring ...");
    }

    //广播
    @Test
    public void testFanout() {
        //发送消息
        rabbitTemplate.convertAndSend("spring_fanout_exchange", "", "spring fanout...");
    }

    //topic
    @Test
    public void testTopic() {
        //发送消息
        rabbitTemplate.convertAndSend("spring_topic_exchange", "heima.123.456", "spring topic...");
    }


}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41

# 消费者

spring-rabbitmq-consumer.xml

<?xml version="1.0" encoding="UTF-8" ?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:p="http://www.springframework.org/schema/p"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:rabbit="http://www.springframework.org/schema/rabbit"
       xsi:schemaLocation="
       http://www.springframework.org/schema/beans
        https://www.springframework.org/schema/beans/spring-beans.xsd
       http://www.springframework.org/schema/context
        https://www.springframework.org/schema/context/spring-context.xsd
        http://www.springframework.org/schema/rabbit
        https://www.springframework.org/schema/rabbit/spring-rabbit.xsd
">
    <!--    加载配置文件-->
    <context:property-placeholder location="classpath:rabbitmq.properties"/>

    <!--    定义rabbitmq connectionFactory-->
    <rabbit:connection-factory id="connectionFactory" host="${rabbitmq.host}"
                               port="${rabbitmq.port}"
                               username="${rabbitmq.username}"
                               password="${rabbitmq.password}"
                               virtual-host="${rabbitmq.virtual-host}"/>

    <bean id="springQueueListener" class="com.itheima.rabbitmq.SpringQueueListener"/>
<!--    <bean id="fanoutListener1" class="com.itheima.rabbitmq.FanoutListener1"/>-->
<!--    <bean id="fanoutListener2" class="com.itheima.rabbitmq.FanoutListener2"/>-->
<!--    <bean id="topicListenerStar" class="com.itheima.rabbitmq.TopicListenerStar"/>-->
<!--    <bean id="topicListenerWell" class="com.itheima.rabbitmq.TopicListenerWell"/>-->
<!--    <bean id="topicListenerWell2" class="com.itheima.rabbitmq.TopicListenerWell2"/>-->

    <rabbit:listener-container connection-factory="connectionFactory" auto-declare="true">
        <rabbit:listener ref="springQueueListener" queue-names="spring_queue"/>
<!--        <rabbit:listener ref="fanoutListener1" queue-names="spring_fanout_queue1"/>-->
<!--        <rabbit:listener ref="fanoutListener2" queue-names="spring_fanout_queue2"/>-->
<!--        <rabbit:listener ref="topicListenerStar" queue-names="spring_topic_queue_star"/>-->
<!--        <rabbit:listener ref="topicListenerWell" queue-names="spring_topic_queue_well"/>-->
<!--        <rabbit:listener ref="topicListenerWell2" queue-names="spring_topic_queue_well2"/>-->
    </rabbit:listener-container>


</beans>

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42

消费者类根据 bean id 编写对应的类名并实现 MessageListener 重写 onMessage 方法

package com.itheima.rabbitmq;

import org.springframework.amqp.core.Message;
import org.springframework.amqp.core.MessageListener;

public class SpringQueueListener implements MessageListener {
    @Override
    public void onMessage(Message message) {
        System.out.println(new String(message.getBody()));
    }
}

1
2
3
4
5
6
7
8
9
10
11
12

# Spring Boot 整合 RabbitMQ

# 生产者

绑定交换机和队列

package com.example.springrabbitmqproducer.rabbitmq.config;

import org.springframework.amqp.core.*;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

@Configuration
public class RabbitMQConfig {
    public static final String EXCHANGE_NAME = "boot_topic_exchange";
    public static final String QUEUE_NAME = "boot_queue";

    //1.交换机
    @Bean("bootExchange")
    public Exchange bootExchange() {
        //获取4种类型的交换机
        return ExchangeBuilder.topicExchange(EXCHANGE_NAME).durable(true).build();
    }

    //2.队列
    @Bean("bootQueue")
    public Queue bootQueue() {
        return QueueBuilder.durable(QUEUE_NAME).build();
    }

    //3.队列和交换机的绑定
    @Bean
    public Binding bindQueueExchange(@Qualifier("bootQueue") Queue queue, @Qualifier("bootExchange") Exchange exchange) {
        return BindingBuilder.bind(queue).to(exchange).with("boot.#").noargs();
    }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31

test

package com.example.springrabbitmqproducer;

import com.example.springrabbitmqproducer.rabbitmq.config.RabbitMQConfig;
import org.junit.jupiter.api.Test;
import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.context.SpringBootTest;

@SpringBootTest
class SpringRabbitmqProducerApplicationTests {

    //注入RabbitTemplate
    @Autowired
    private RabbitTemplate rabbitTemplate;

    @Test
    public void testSend(){
        rabbitTemplate.convertAndSend(RabbitMQConfig.EXCHANGE_NAME,"boot.haha","boot mq hello");
    }




}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25

# 消费者

@Component
public class RabbitMQListener {

    //监听指定队列
    @RabbitListener(queues = "boot_queue")
    public void ListenerQueue(Message message) {
        System.out.println(new String(message.getBody()));
    }
}

1
2
3
4
5
6
7
8
9

编辑

上次更新: 2023/12/06, 01:31:48

← Spring Boot 高级 RabbitMQ 高级→
